2018年6月29日 星期五

DHT11_SSD1306_Webserver



















//D1 --SSD1305 SCL
//D2 --SSD1306 SDA

// Including the ESP8266 WiFi library
#include <ESP8266WiFi.h>
#include "DHT.h"
#include  "Adafruit_Sensor.h"
#include <SPI.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define OLED_RESET LED_BUILTIN  //4
Adafruit_SSD1306 display(OLED_RESET);

// Uncomment one of the lines below for whatever DHT sensor type you're using!
#define DHTTYPE DHT11   // DHT 11
//#define DHTTYPE DHT21   // DHT 21 (AM2301)
//#define DHTTYPE DHT22   // DHT 22  (AM2302), AM2321

// Replace with your network details
//const char* ssid = "YOUR_NETWORK_NAME";
//const char* password = "YOUR_NETWORK_PASSWORD";
const char* ssid = "74170287";
const char* password = "24063173";


// Web Server on port 80
WiFiServer server(80);

// DHT Sensor
const int DHTPin = D3;
// Initialize DHT sensor.
DHT dht(DHTPin, DHTTYPE);

// Temporary variables
static char celsiusTemp[7];
static char fahrenheitTemp[7];
static char humidityTemp[7];

// only runs once on boot
void setup() {
  // Initializing serial port for debugging purposes
  Serial.begin(115200);
  delay(10);
  dht.begin();

  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);
  // Clear the buffer.
  display.clearDisplay();
  display.display();

  display.setTextSize(1);
  display.setTextColor(WHITE);
  display.setCursor(0,0);
  display.println("Hello from:");
  display.println("http://alex9ufo.blogspot.com/");
  display.display();

  // Connecting to WiFi network
  Serial.println();
  Serial.print("Connecting to ");
  Serial.println(ssid);

  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }
  Serial.println("");
  Serial.println("WiFi connected");

  // Starting the web server
  server.begin();
  Serial.println("Web server running. Waiting for the ESP IP...");
  delay(10000);

  // Printing the ESP IP address
  Serial.println(WiFi.localIP());
}

// runs over and over again
void loop() {
  // Listenning for new clients
  WiFiClient client = server.available();

  if (client) {
    Serial.println("New client");
    // bolean to locate when the http request ends
    boolean blank_line = true;
    while (client.connected()) {
      if (client.available()) {
        char c = client.read();

        if (c == '\n' && blank_line) {
            // Sensor readings may also be up to 2 seconds 'old' (its a very slow sensor)
            float h = dht.readHumidity();
            // Read temperature as Celsius (the default)
            float t = dht.readTemperature();
            // Read temperature as Fahrenheit (isFahrenheit = true)
            float f = dht.readTemperature(true);
            // Check if any reads failed and exit early (to try again).
            if (isnan(h) || isnan(t) || isnan(f)) {
              Serial.println("Failed to read from DHT sensor!");
              strcpy(celsiusTemp,"Failed");
              strcpy(fahrenheitTemp, "Failed");
              strcpy(humidityTemp, "Failed");
            }
            else{
              /*
              // Compute heat index in Fahrenheit (the default)
              float hif = dht.computeHeatIndex(f, h);
              // Compute heat index in Celsius (isFahreheit = false)
              float hic = dht.computeHeatIndex(t, h, false); */

              // Computes temperature values in Celsius + Fahrenheit and Humidity
              float hic = dht.computeHeatIndex(t, h, false);
              dtostrf(hic, 6, 2, celsiusTemp);
              float hif = dht.computeHeatIndex(f, h);

              dtostrf(hif, 6, 2, fahrenheitTemp);
              dtostrf(h, 6, 2, humidityTemp);
              // You can delete the following Serial.print's, it's just for debugging purposes
              Serial.print("Humidity: ");
              Serial.print(h);
              Serial.print(" %\t Temperature: ");
              Serial.print(t);
              Serial.print(" *C ");
              Serial.print(f);
              Serial.print(" *F\t Heat index: ");
              Serial.print(hic);
              Serial.print(" *C ");
              Serial.print(hif);
              Serial.print(" *F");
              Serial.print("Humidity: ");
              Serial.print(h);
              Serial.print(" %\t Temperature: ");
              Serial.print(t);
              Serial.print(" *C ");
              Serial.print(f);
              Serial.print(" *F\t Heat index: ");
              Serial.print(hic);
              Serial.print(" *C ");
              Serial.print(hif);
              Serial.println(" *F");
              //-------------SSD 1306 Display-------------------//
                // Clear the buffer.
              display.clearDisplay();
              display.display();

              display.setTextSize(1);
              display.setTextColor(WHITE);
              display.setCursor(0,0);
              display.print("TemCel:");
              display.print(celsiusTemp);
              display.println(" *C ");

              display.setCursor(0,8);
              display.print("TemFah:");
              display.print(fahrenheitTemp);
              display.println(" *F ");

              display.setCursor(0,16);
              display.print("Humidity:");
              display.print(humidityTemp);
              display.println(" %");
              //-------------SSD 1306 Display-------------------//
              display.setCursor(0,24);
              display.println("http://alex9ufo.blogspot.com/");
              display.display();
              //-------------SSD 1306 Display-------------------//
            }
            client.println("HTTP/1.1 200 OK");
            client.println("Content-Type: text/html");
            client.println("Connection: close");
            client.println();
            // your actual web page that displays temperature and humidity
            client.println("<!DOCTYPE HTML>");
            client.println("<html>");
            client.println("<head></head><body><h1>ESP8266 - Temperature and Humidity</h1><h3>Temperature in Celsius: ");
            client.println(celsiusTemp);
            client.println("*C</h3><h3>Temperature in Fahrenheit: ");
            client.println(fahrenheitTemp);
            client.println("*F</h3><h3>Humidity: ");
            client.println(humidityTemp);
            client.println("%</h3><h3>");
            client.println("</body></html>");
            break;
        }
        if (c == '\n') {
          // when starts reading a new line
          blank_line = true;
        }
        else if (c != '\r') {
          // when finds a character on the current line
          blank_line = false;
        }
      }
    }
    // closing the client connection
    delay(1);
    client.stop();
    Serial.println("Client disconnected.");

  }


OLED SSD1306 Display







//D1 --SSD1305 SCL
//D2 --SSD1306 SDA

#include <SPI.h>
#include <Wire.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>

#define OLED_RESET LED_BUILTIN  //4
Adafruit_SSD1306 display(OLED_RESET);

//#if (SSD1306_LCDHEIGHT != 64)
//#error("Height incorrect, please fix Adafruit_SSD1306.h!");
//#endif

void setup() {
  display.begin(SSD1306_SWITCHCAPVCC, 0x3C);

  // Clear the buffer.
  display.clearDisplay();
  display.display();

  display.setTextSize(1);
  display.setTextColor(WHITE);
  display.setCursor(0,0);
  display.println("Hello from:");
  display.println("http://alex9ufo.blogspot.com/");
  display.display();

}

void loop() {
  // put your main code here, to run repeatedly:

}

2018年6月20日 星期三

NodeMCU Starter Kit - Neo










NodeMCU Starter Kit - Neo

NodeMCU Analog Input on Arduino IDE

This tutorial of Robo India explains the basics of input and output programming in physical computing world. This tutorial teaches how to take analog input from NodeMCU.

NodeMCU Analog Output on Arduino IDE

This tutorial of Robo India explains the basics of input and output programming in physical computing world. This tutorial teaches how to take analog output from NodeMCU.

NodeMCU Serial Monitor on Arduino IDE

This tutorial of Robo India explains the basics of serial monitor of Arduino IDE for NodeMCU.

NodeMCU i2c Scanner on Arduino IDE

This tutorial of Robo India explains how to get address of i2c device connected to a NodeMCU using Arduino IDE.

NodeMCU Weather Station on Arduino IDE

This tutorial of Robo India is to make an online weather station on NodeMCU with Arduino IDE.

NodeMCU Temperature, Humidity data upload on Thingspeak on Arduino IDE

This tutorial of Robo India explains how to store and upload the weather data of DHT11 temperature and humidity sensor on cloud ( ThingSpeak.com) using wifi modem NodeMCU.

NodeMCU on Arduino - Introduction

This tutorial of Robo India explains how to use NodeMCU on Arduino IDE.

NodeMCU RGB LED on Arduino IDE

This tutorial of Robo India explains how to use RGB LED on NodeMCU using Arduino IDE.

NodeMCU Switching Using Transistor on Arduino IDE

This tutorial of Robo India explains how to a transistor as a switch on NodeMCU using Arduino IDE.

NodeMCU Seven Segment Display on Arduino IDE

This tutorial of Robo India explains how to use a seven segment display on NodeMCU using Arudino IDE.

NodeMCU connecting to internet on Arduino IDE

This tutorial of Robo India is a basic tutorial to connect a NodeMCU wifi module to the internet. This tutorial is based on Arduino IDE.

NodeMCU Digital Output - LED Blinking on Arduino IDE

This tutorial of Robo India explains the basics of input and output programming in physical computing world. This tutorial teaches how to take digital output from NodeMCU on Arduion IDE. The output is taken on LED, It glows for a second and remain off for a second.

NodeMCU 16x2 LCD on Arduino IDE

This tutorial explains how to use 16x2 LCD on NodeMCU wifi development board using Arduino IDE.

NodeMCU LDR on Arduino IDE

This tutorial of Robo India explains how to use LDR on NodeMCU using Arduino IDE.

NodeMCU IR proximity & Color Detection on Arduino IDE

This tutorial of Robo India explains how to use IR LED and photo diode as a color detection sensor and as a proximity detection sensor.

DHT11 Temperature & Humidity sensor on NodeMCU using Arduino IDE

Robo India presents tutorial on how to read temperature and humidity data through DHT11 sensor using ESP8266 wifi module on NODEMCU LUA platform.

NodeMCU on Arduino IDE - Getting MAC address

This tutorial of Robo India explains how to get MAC address of NodeMCU using Aruduino IDE.



NodeMCU Digital Input with Output Arduino IDE

This tutorial of Robo India explains the basics of input and output programming in physical computing world. This tutorial teaches how to take digital input and show that as an output on NodeMCU on Arduion IDE. The input is taken through switch and the output is taken on LED, the LED glows when button is pressed.

2018年6月17日 星期日

IoT Sharing

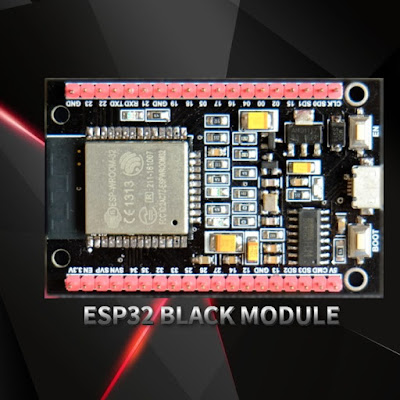

Introduction to ESP32
